General computing, heterogeneous computing, collaborative computing, edge computing and other diversified product layout

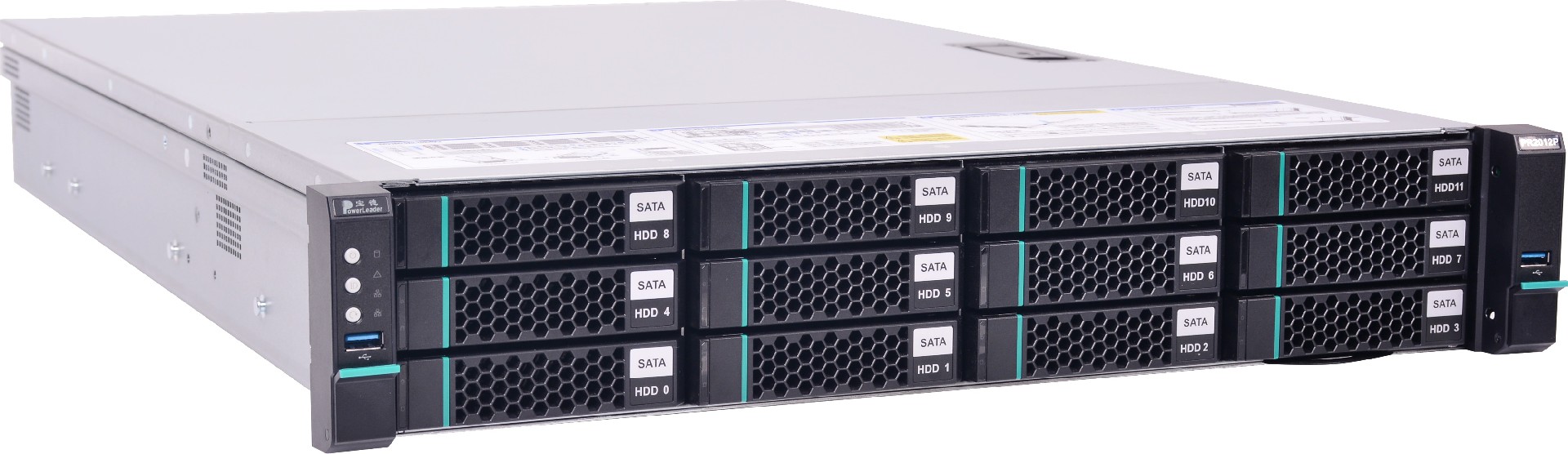

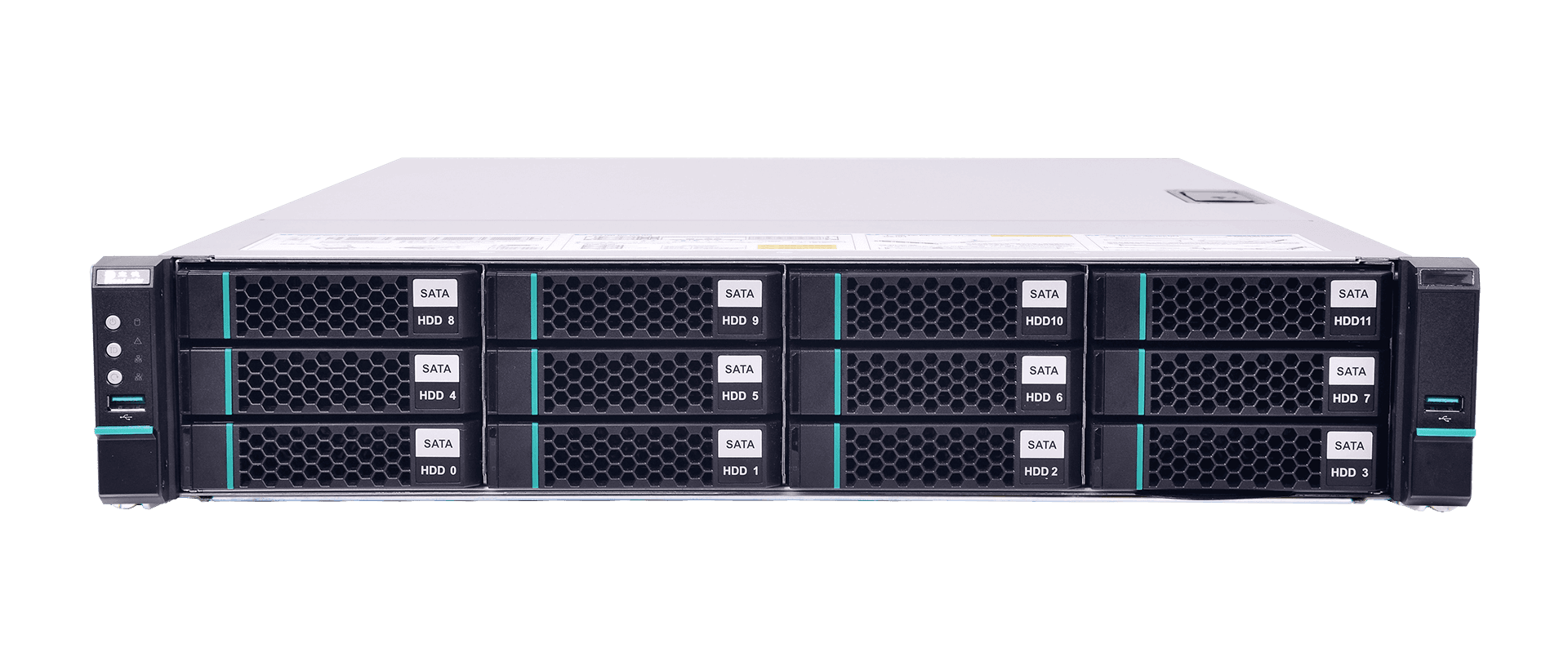

PR2008AL is PowerLeader's latest AMD platform 2U dual-socket high-performance server product, providing 2 AMD SP3 processor slots, supporting AMD's latest Milan series processors, supporting up to 64 cores in a single processor core, which can provide unparalleled extreme experience and break a number of world-record computational performance, which can greatly enhance the computing power of the business platform, and can flexibly PCI-E, M.2 and other multi-purpose expansion.
Supportsup to 2 AMD EPYC?7002/7003 series processors for powerful computing.
Maximum 16 memoryslots provide up to 8 memory channels for a single processor, supporting up toDDR4 3200MHz frequency..
Providesup to 6 PCIE 4.0 expansion slots, providing rich board expansion.
Optionalsupport for 2 NVMe U.2 SSDs to provide high performance IO expansion.
Optionalsupport for highly reliable RAID protection function, providing differentlevels of data redundancy protection.
SupportsIPMI 2.0 to facilitate monitoring and management of hardware status, and alsoprovides iKVM remote desktop management.
It adopts an intelligentcooling system to effectively control the operating temperature and improveenergy efficiency ratio. It adopts full shielding to prevent electromagneticradiation, anti-interference and anti-static.
Providesredundant 1+1 power supply, supports powerconsumption monitoring, module loss alarm and other functions, providing higher securityfor the safe operation of the server.
| Characteristic | PR2008ALTechnicalSpecifications |
|---|---|
| Format | 2U rack server |
| Number of processors | Maximum 2 pieces |
| Processor specifications | AMD EPYC? 7002/7003 series processors, supporting maximum TDP 280W |
| Memory | 16 DDR4 memory slots , supports R DIMM/LRDIMM up to DDR4 3200MHz, and the maximum system capacity supports 4 TB *When only 1 CPU is installed , a maximum of 8 DIMM slots are supported |
| Storage | Prefix: Configuration 1: Supports up to 8 2.5/3.5-inch SATA/ SAS disks (directly connected to the backplane, SAS disks must be equipped with SAS cards or RAID cards ) Configuration 2 : Supports up to 12 2.5/3.5-inch SATA/ SAS disks (extension backplane, a SAS card or RAID card must be selected ) Post: Optional support for 2 2.5-inch disks ( SATA / SAS/ NVME ) built-in: Onboard support 1 PCIE 4.0 x 4 M.2 SSD (supports 2280/22110 ) |
| RAID support | Optional supports RAID 0 , 1 , 10 , 5 , 50 , 6 , 60 levels, RAID no cache/1GB /2GB cache Optional cache power-down protection |
| Network | Standard configuration: 2 1Gb electrical ports (Broadcom BCM5720L ) 11Gb management port comes standard Optional expansion Gigabit and 10 Gigabit network cards |
| PCI-E extension | Provides 6 expansion slots: 3 *PCI-E 4.0 x 16 half height half length 3 *PCI-E 4.0 x 8 half height half length *When only 1 CPU is installed , some PCI-E slots are unavailable |
| Ports | USB3.0 interface: 2 (front) and 2 (rear) VGA interface: 1 (rear) COM serial port: 1 (rear) |
| Fans | 4 8038 cooling fans |
| Power supply | Optional 800W /1200W redundant 1+ 1 power supply, 80Plus platinum level |
| IPMI Management | Support IPMI 2.0 , provide 1 RJ45 management network port externally, support iKVM remote management Onboard ASPEED AST2600 BMC |
| Display controller | Integrated ASPEED AST2600 |
| CD-ROM/Floppy drive | Optional USB interface light |
| Operating systems | Windows Server 2016 and above Red Hat Enterprise Advanced Server 7.6 and above SuSE SLES 11 SP4and above Ubuntu 18.04and above CentOS 7.6and above |
| Powered by | 220V AC/240V DC |
| Physical size | Width 438mm*Depth 660mm*Height 87mm |
| environment and regulations | |
| Temperature | 10℃to 30℃during operation -40℃to +70℃when not operating surroundings |
| Relative humidity | 95% non-operating , non-condensing at 25℃to 30℃ |
| Noise | In operation mode, the sound pressure measured in the side position is <50dBA;the sound intensity measured when the ambient temperature is <28℃is 6.2BA |
| Safety Standards (China) | CCC |
