General computing, heterogeneous computing, collaborative computing, edge computing and other diversified product layout

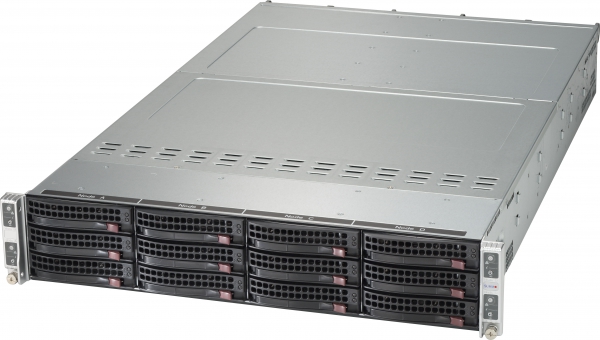

Powerleader 2U four-node server architecture is market-proven, delivering exceptional throughput, storage, networking, I/O, memory, and processing power in a 2U form factor. Customers can address their most challenging IT needs with solutions that benefit from exceptional total cost of ownership (TCO).
Powerleader 2U four-node server solutions are designed to simplify deployment and maintenance, and are assembled to the highest quality to ensure continuous operation at maximum capacity. With Powerleader's 2U four-node server, customers in high-end enterprise, data center, HPC and cloud computing environments gain maximum competitive advantage from data center resources.

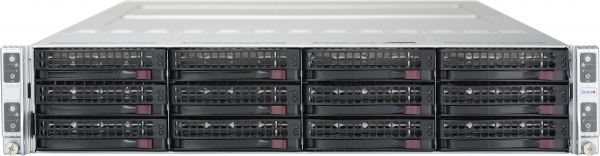

single 2U chassis is equipped with up to 4 half-widthdual - socket server nodes and 123.5 -inch hot- swap hard drives .
2U four-node server with central cooling fan and 2 shared titanium (96%) hot-swappable power supplies.
2U four-node server is suitable for the front and rear airflow cooling design of traditionaldata centers and standard 19 -inch industrial cabinets.
swappable server nodes,power supplies and disk drives enhanceavailability and ease of use.
Standard support for SATA HDD , optional support for SAS 3008 and 3108 versions . Built-in DOMis supported .
Each node supports a network expansion module (SIOM) for user flexiblenetworking options such as 1G, 10G, 25G, 40G or 100G. Supports 2 half-heightPCI-E 3.0 x16 expansion slots at the same time;
| characteristic | PR2740T PTechnical Specifications |
|---|---|
| form | 2U4 nodes |
| Number of processors | Per node :1/2 |
| Processor model | Per node: support second generationIntel® Xeon® Scalable Processors (Cascade Lake/Skylake) |
| RAM | Per node:16 DIMMs; supports up to 4 TB ECC 3DS LRDIMM or RDIMM DDR4-2 933 MHz Supports Intel Optane DI MM |
| hard disk | Per node: Standard 3 * 3.5" SATA3 Hot-swap drive bays Optional support for SAS HDDs |
| Raidsupport | Optional support for RAID0, 1, 10, 5, 50, 6, 60, etc., RAID 2GB Cache; |
| Onboard network | The onboard network port is not integrated, and it can optionally support Gigabit/10 Gigabit network module (SIOM); |
| PCIEextension | Each node:2 *PCI-E 16half-height expansion slots ,supporting half-height device expansion ; |
| other ports | Each node: 2USB3.0,1 VGAinterface |
| power supply | Standard2200 W 1+1titanium redundant power supply |
| manage | Each node: onboardBMCmanagement module, supportIPMI2.0, provide11000Mbps RJ45management network port |
| CD-ROM/floppy disk drive | ExternalUSB DVD-ROM |
| Supported Operating Systems | Windows Server 201 6/2019 RHEL 7.3 |
| powered by | Full voltage range adaptive server professional power supply,115V/60Hz,230V/50Hzadaptive ; |
| physical size | (L*W*H):7 74 mm*4 38 mm*88mm;support19-inch standard cabinet, net weight about3 2.7 KG |
| Environment and Specifications | |
| ambient temperature | Operating10°C to35°C Non-operating-40°C to+ 60 °Cambient |
| Relative humidity | 95%non-operating, non- condensing at25°Cto30°C |
| highest altitude | 3000m |
| Safety Standards (China) | CCC |
